     Smart HeatSinks® offers the low cost, B-series, standard heat sinks for BGA and CPU/GPU, devices. This simple heat sink can be attached to devices with either the most popular adhesive thermal tape or spring clip onto PCB. The heat sink offers black anodized surface finish and can be used in either natural (free) or forced convection cooling applications.

    We also offer customizing BGA heat sinks, parts and analysis to meet customers special needs in their new products developing.

STANDARD BGA HEAT SINKS DATASHEET

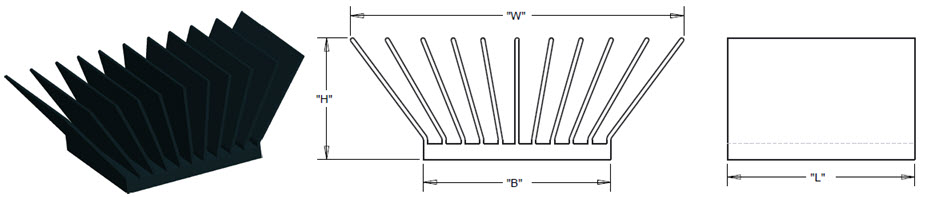

DIMENSIONS IN MM


Part Number

Height "H"

(mm)

Width "W"

(mm)

Width "B"

(mm)

Length "L"

(mm)

Surface Area

(mm2)

Weight

(g)
BA-150-125E 12.5 30.0 15.0 15.0 3040 3.4
BA-150-75E 7.5 28.0 15.0 15.0 2060 2.6
BA-170-75E 7.5 28.0 17.0 17.0 2276 3.0
BA-270-175E 17.5 48.0 27.0 27.0 11679 12.5
BA-310-75E 7.5 44.0 31.1 31.1 6663 9.5
BA-190-90E 9.0 26.0 19.0 19.0 3337 4.1
BA-450-125E 12.5 68.0 45.0 45.0 20893 25.8
BA-425-125E 12.5 72.0 42.5 42.5 18160 22.6
BA-375-125E 12.5 60.0 37.5 37.5 15225 18.4
BA-325-75E 7.5 44.0 32.5 32.5 7034 10.3

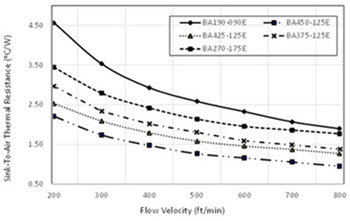

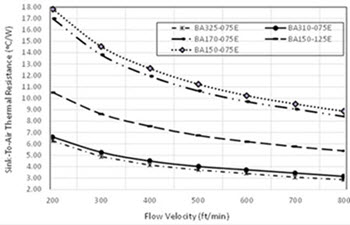

THERMAL PERFORMANCE

Universal Mount
Heat Sink
Cam Clip System
Heat Sink
Matrix Clip System
Heat Sink
Liquid Cooling
Heat Sink
Surface Mount
Heat Sink
Std & Custom
Heat Sink
Ceramic
Heat Sink
