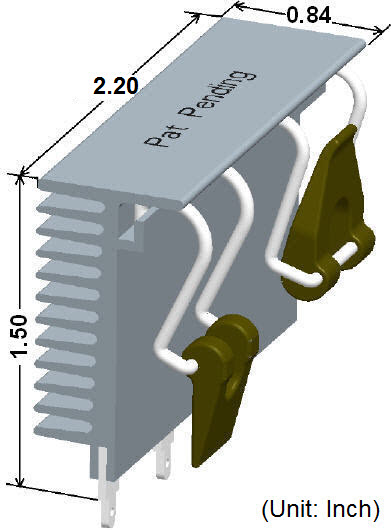

   Smart HeatSinks® offers the patented, super easily assembly and disassembly CaM-clip System (CMS) heat sink which requires no fixtures, jigs and tools to assemble devices onto the heat sink. The new heat sink comprises a heat sink body with extruded or brazed convoluted fins and an integral cam spring clip which has an auto-align feature and camming mechanism. This heat sink provides easy assembly and all-in-one solution. It can be used for TO-220, TO-247, TO-264 and TO-218 series power devices with either natural or forced convention cooling.
   It is the ideal type of heat sink for high power density and small size (1U or 2U) electronic packaging with forced convention cooling.



  Download Catalogue  =>>  See Product Specifications and More ...

Free Samples (Spring Clips Included)
Image Part Number Descriptions QTY $/ea Buy

CM142-18-56-D

 56 mm (2.2") long, two clips for two TO-247 or TO-220 devices, no finish. 5 0.00

Free Samples of
Price info (Spring Clips Included) and On-line Shopping
Image      Part Number Descriptions QTY $/ea Buy

CM121-18-25-D
OR
CM141-18-25-D		 25 mm long, one clip for one TO-247 or TO-220 device. Degreased finish. 5 2.88
Box of
100 2.59
500 2.30

CM121-18-25-B
OR
CM141-18-25-B		 25 mm long, one clip for one TO-247or TO-220 device. Black anodized finish. 5 3.09


Box of
100 2.78
500 2.48
CM122-18-50-D
OR
CM142-18-50-D		 50 mm long, two clips for two TO-247 or TO-220 devices. no finish.
 		 5 4.56
Box of

100 4.10
500 3.65

CM122-18-50-B
OR
CM142-18-50-B		 50 mm long, two clips for two TO-247 or TO-220 devices. Black anodized finish. 5 4.89
Box of
100 4.40
500 3.91
CM123-18-75-D
OR
CM143-18-75-D		 75 mm long, three clips for three TO-247 or TO-220 devices. Degreased finish..
 		 5 6.36
Box of

100 5.75
500 5.11
CM123-18-75-B
OR
CM143-18-75-B		 75 mm long, three clips for three TO-247 or TO-220 devices. Black anodized finish.
 		 5 6.60

Box of
100 5.94
500 5.28
CM161-18-30-D
 		 30 mm long, one clip for one TO-264 device. Degreased finish.
 		 5 3.18
Box of
100 2.89
500 2.60
CM161-18-30-B
 		 30 mm long, one clip for one TO-264 device. Black anodized finish. 5 3.39
Box of
100 3.08
500 2.78
CM162-18-58-D
 		 58 mm long, two clips for two TO-264 devices. Degreased finish. 5 4.86
Box of
100 4.40
500 3.95
CM162-18-58-B
 		 58 mm long, two clips for two TO-264 devices. Black anodized finish.
 		 5 5.19
Box of
100 4.70
500 4.21
CM163-18-85-D
 		 85 mm long, three clips for three TO-264 devices. Degreased finish. 5 6.66
Box of
100 6.05
500 5.41
CM163-18-85-B
 		 85 mm long, three clips for three TO-264 devices. Black anodized finish.
 		 5 6.90
Box of
100 6.24
500 5.58

Want to get a whole sale price?  Get Quote...
