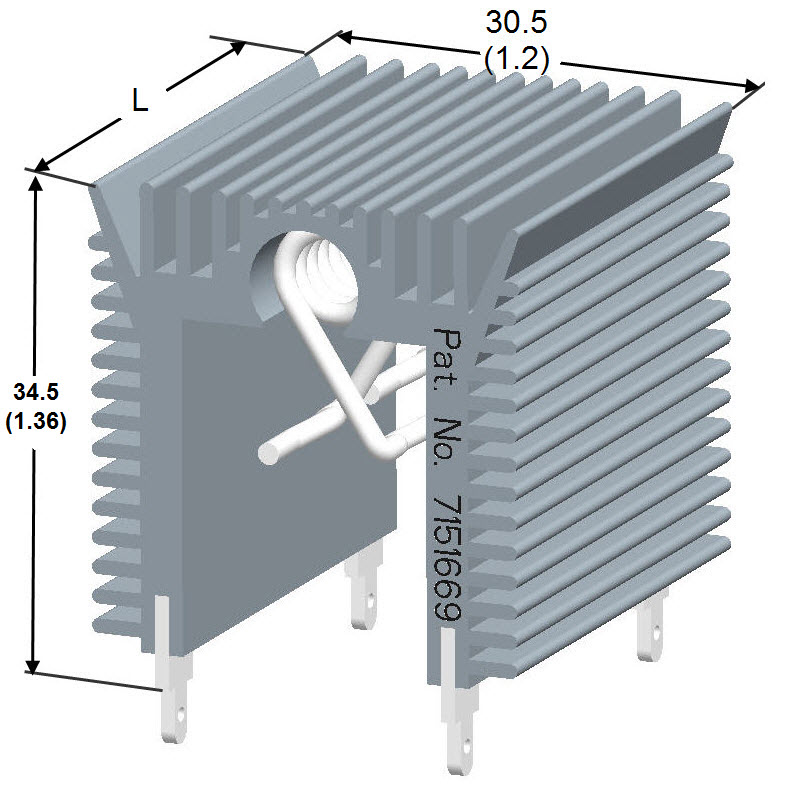

     Smart HeatSinks® offers the patented, high performance, low cost and compact heat sink with matrix clip system (MCS). The heat sink's capacity of holding power devices can be increased transversally & longitudinally. The matrix [i, j] with i spring clips along X axis and j along Y axis makes it very easy for designers to configure electronic packaging. All-in-One solution makes designers be no longer troubled with how to attach devices onto heat sink and how to mount the heat sink assembly onto PCB. This heat sink provides easiest assembly, largest surface areas and smallest space occupation. It is the ideal type of heat sink for high power density and small size (1U or 2U) electronic packaging with forced convention cooling.

Are you interested ... ?     See Product Specifications and More ...

Free Samples (Spring Clips Included)
Image Part Number Descriptions QTY $/ea Get
MC101-T247-31-20-D

0.8" long, one clip for two TO-220 or TO-247 devices. No finish.

5 0.00
Free Samples of
MC101-T247-31-30-D

30mm (1.2" ) long, one clips for two TO-220 or TO-247 devices. No finish.

5 0.00
Free Samples of
MC102-T247-31-56-B

56mm (2.2") long heat sink w/ two clips for four (4) TO-220 or TO-247 devices. Black anodized

3 0.00
Free Samples of

On-line Shopping (Spring Clips Included)
Image Part Number Descriptions QTY $/ea Buy
MC102-T264-34-55-D

55mm long heat sink, w/two clips for four TO-220 or TO-247 or TO-264 devices. No finish.

100 6.47
Box of
500 5.35
MC102-T264-34-55-B

55mm long heat sink w/two clips for four TO-220 or TO-247 or TO-264 devices. Black anodized

100 6.58
Box of
500 6.61
MC102-T264-56-55-D

55mm long heat sink, w/two clips for four TO-220 or TO-247 or TO-264 devices. No finish.

25 8.66
Box of
100 7.30
MC102-T264-56-56-B

55mm long heat sink w/ two clips for four TO-220 or TO-247 or TO-264 devices. Black anodized

25 9.35
Box of
100 7.78
